CPUSocket: LGA 1700,

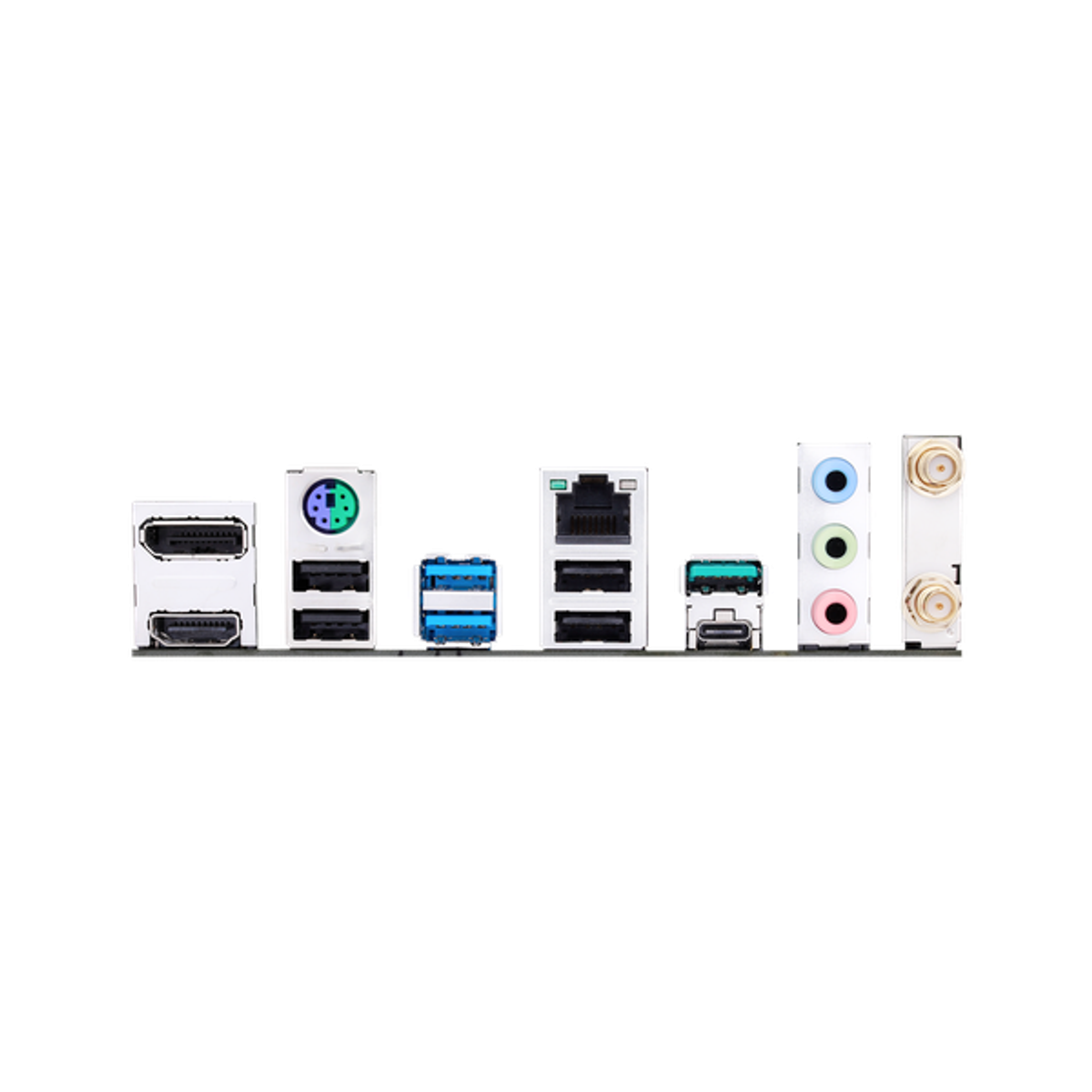

Support Intel® Core⢠14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® ProcessorsEthernet1 x Realtek 2.5Gb EthernetUSBRear:
1 x USB 3.2 Gen 2x2 Type-C (20Gbps),
1 x USB 3.2 Gen 2 Type-A (10Gbps),
2 x USB 3.2 Gen 1 Type-A (5Gbps),
4 x USB 2.0 Type-A,
Front:
1 x USB 3.2 Gen 2 Type-C (10Gbps),
2 x USB 3.2 Gen 1 headers (supports 4 x USB 3.2 Gen 1),
2 x USB 2.0 headers (supports 4 x USB 2.0),
Note: USB_E1âE4 share bandwidth. USB_E5âE8 share bandwidth.ChipsetIntel® Z790 ChipsetWirelessWi-Fi 6:
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax),
Supports 2.4/5GHz frequency band,
Bluetooth® v5.2Memory slots Support4 x DIMM, Max. 192GB, DDR5 7200+Internal I/O ConnectorsCooling:
1 x CPU Fan (4-pin),
1 x CPU OPT Fan (4-pin),
1 x AIO Pump (4-pin),
3 x Chassis Fan (4-pin),
Power:
1 x 24-pin ATX,
1 x 8-pin 12V,
1 x 4-pin 12V,
Storage:
3 x M.2 (Key M),
4 x SATA 6Gb/s,
USB:
1 x USB 3.2 Gen 2 Type-C,
2 x USB 3.2 Gen 1 headers (supports 4 x USB 3.2 Gen 1),
2 x USB 2.0 headers (supports 4 x USB 2.0),
Misc:
3 x Addressable Gen 2,
2 x Aura RGB,
1 x Clear CMOS,
1 x COM,
1 x Front Audio (AAFP),
1 x S/PDIF Out,
1 x SPI TPM (14-1 pin),
1 x System Panel (20-5 pin),
1 x Thunderbolt (USB4) headerExpansion SlotsExpansion Slots:
1 x PCIe 5.0 x16 slot,
3 x PCIe 4.0 x16 slots (support x4 mode),
1 x PCIe 3.0 x1 slot,
Storage:
3 x M.2 slots,
4 x SATA 6Gb/s portsGraphics Device1 x DisplayPort 1.4,
1 x HDMI⢠2.1SoundRealtek 7.1 Surround Sound High Definition Audio CODEC,
3 x Audio jacksForm FactorATX,
12 x 9.2 inWarranty1 Year Warranty
