CPUSocket: AM5,

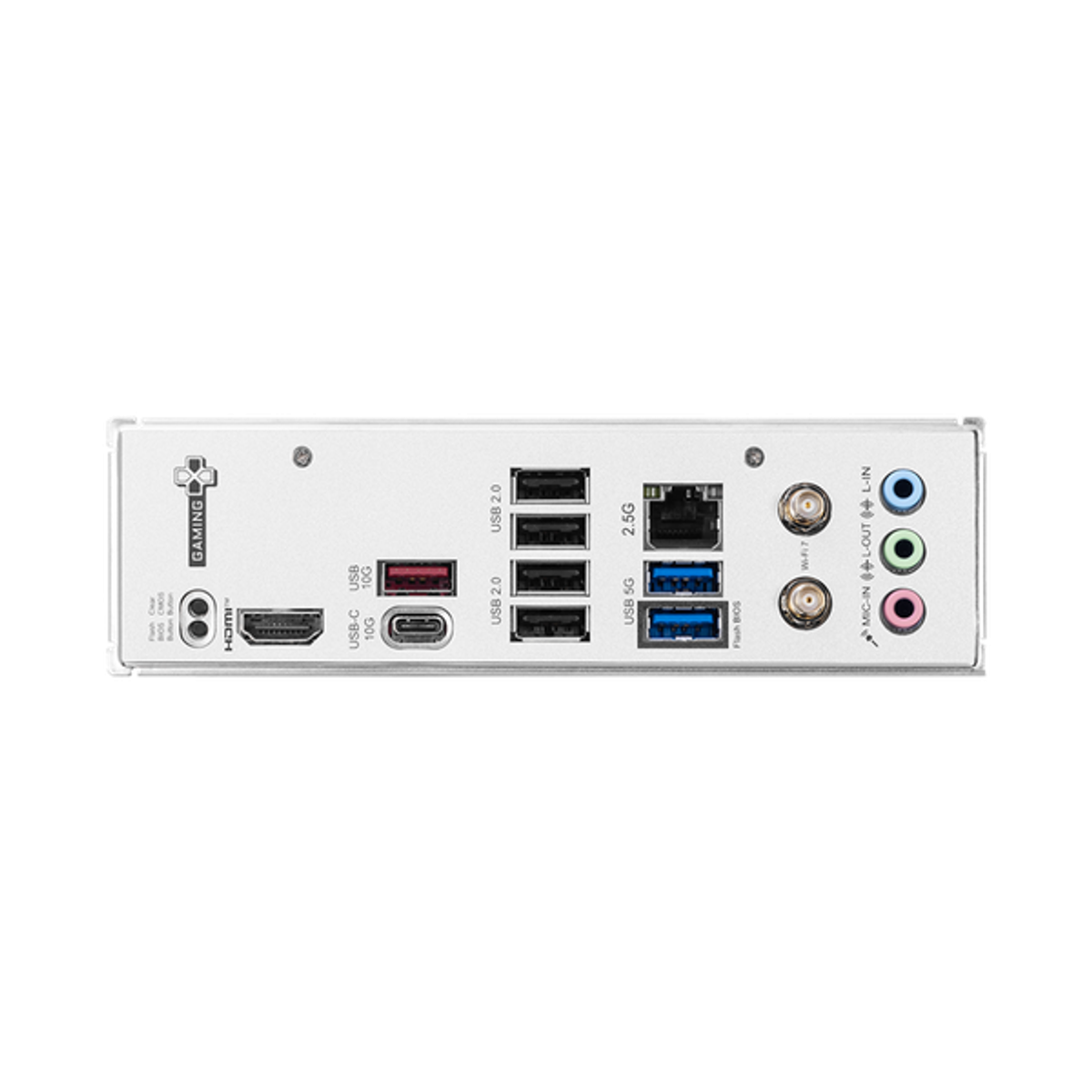

Supports: AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop ProcessorsEthernetRealtek® 8125BG 2.5G LANUSB4 x USB 2.0 (Rear),
4 x USB 2.0 (Front),
2 x USB 5Gbps Type-A (Rear),
2 x USB 5Gbps Type-A (Front),
1 x USB 5Gbps Type-C (Front),
1 x USB 10Gbps Type-A (Rear),
1 x USB 10Gbps Type-C (Rear)ChipsetAMD B840 ChipsetWirelessWi-Fi 7 (M.2 Key-E module pre-installed),
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps,
Supports 802.11 a/b/g/n/ac/ax/be,
Bluetooth 5.4, MLO, 4KQAMMemory slots Support4 x DDR5 UDIMM, max capacity 256GB,
Supports DDR5 8000–5600 MT/s (OC), 5600–4800 MT/s (JEDEC)Internal I/O Connectors1 x ATX_PWR,
1 x CPU_PWR,
1 x CPU Fan,
1 x Combo Fan (Pump/Sys),
4 x System Fan,
1 x EZ Conn-header (JAF_1),
2 x Front Panel (JFP),
1 x Chassis Intrusion (JCI),
1 x Front Audio (JAUD),
1 x COM Port (JCOM),
1 x Tuning Controller (JDASH),
2 x Addressable V2 RGB (JARGB_V2),
1 x RGB LED (JRGB),
1 x TPM Header (TPM 2.0),
4 x USB 2.0,
2 x USB 5Gbps Type-A,
1 x USB 5Gbps Type-C,
4 x EZ Debug LEDExpansion Slots5 x PCI-E x16:
E1 (4.0 x16 CPU, x16/9000–7000, x8/8700–8400, x4/8500–8300),
E2/3/5 (3.0 x1 Chipset),
E4 (3.0 x4 Chipset),
2 x M.2:
M2_1 (from CPU, PCIe 4.0 x4, supports 2280/2260),
M2_2 (from CPU, supports 22110/2280/2260, PCIe 4.0 x4 for Ryzen 9000/7000, 3.0 x4 for 8700/8600/8400, 3.0 x2 for 8500/8300),
4 x SATA 6GGraphics Device1 x HDMI (Supports HDMI 2.1, maximum resolution of 4K @ 60Hz)SoundRealtek® ALC897, 7.1-Channel High Definition AudioForm FactorATX,
243.84 x 304.8 mmWarranty1 Year Warranty
